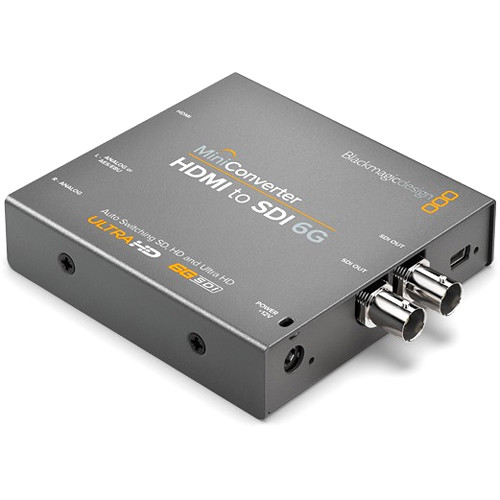

Blackmagic Design Mini Converter – HDMI to SDI 6G

PRODUCT HIGHLIGHTS

4K HDMI Input
2 x 6G-SDI Outputs
Supports SD, HD, UHD 4K & DCI 4K Signals
Automatic Input Signal Detection
24-Bit, 48 kHz Audio
Analog & AES-EBU Digital Audio Inputs
Embeds Audio Into SDI Output
Settings via Mini Switches or Software
USB 2.0 Port for Firmware Updates
12V Universal Power Supply Included
Video Input 1 x HDMI, Type A
Video Output 2 x 6G-SDI
Multi-Rate Support Auto detection of SD, HD, 3G, or 6G-SDI signals
Reclocking Yes
Audio Input Analog: 2 channels with 1 x 1/4″ (6.3 mm) jack per channel
AES/EBU: 4 channels with 1 x 1/4″ jack (6.3 mm)
Format Support DCI 4K
24p

UHD 4K
3840x2160p: 30/29.97/25/24/23.98

HD
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50

SD:
NTSC: 525i/59.94
PAL: 625i/50
SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A or Level B, SMPTE ST-2081, ITU-R BT.656 and ITU-R BT.601
SDI Video Rates Switchable between SD, HD, Ultra HD and DCI 4K
SDI Video Sampling 4:2:2
SDI Color Precision 4:2:2
SDI Color Space YUV
SDI Audio Sampling 24-bit, 48 kHz
SDI Auto Switching Automatically detects SD, HD, or 6G-SDI
HDMI Format Support UHD 4K
3840x2160p: 30/29.97/25/24/23.98

HD
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50

SD:
NTSC: 525i/59.94
PAL: 625i/50
HDMI Color Space YUV and RGB
HDMI Color Precision 4:2:2
4:4:4
HDCP Compliance No. HDMI input is unable to capture from copy-protected HDMI sources
Format Conversion HD down conversion
Settings Control Mini switches or USB software
Firmware Upgradeable Via USB
Power Supply 12 VDC
Power Consumption 4.44 W
Operational Voltage Range 12 to 31 VDC
Operating Temperature 32 to 104°F / 0 to 40 °C
Storage Temperature -4 to 113°F / -20 to 45 °C
Relative Humidity 0 to 90% non-condensing
Dimensions 4.49 x 3.63 x 0.90″ / 11.40 x 9.22 x 2.29 cm
Weight 8.6 oz / 243.8 g
