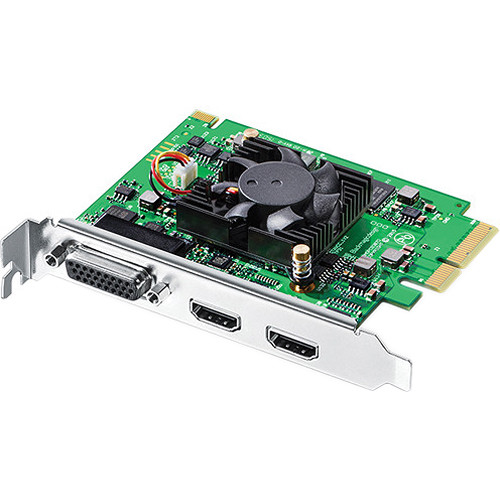

Blackmagic Design Intensity Pro 4K

Blackmagic Design Intensity Pro 4K

PRODUCT HIGHLIGHTS

• Capture & Playback in Ultra HD at 30 fps
• Capture 1080p at 60 fps
• 4-Lane PCIe Card for 4, 8, 16 Lane Slots
• HDMI 1.4b Standard
• Ingest HDMI, YUV, S-Video, and NTSC/PAL
• Save Video Compressed or Uncompressed
• Capture Directly to Popular NLEs
• Output to High Resolution HDTVs
• Connect Cameras for Live Streaming
• Create 60 fps Gameplay Walk-Throughs

• HDMI Video Input	1x HDMI type A connector
  HDMI Video Output	1x HDMI type A connector
  HDMI Audio Input	8 channels embedded in SD, HD, and Ultra HD
  HDMI Audio Output	8 channels embedded in SD, HD, and Ultra HD
  Analog Video Input	Component, Composite or S-Video via breakout cable
  Analog Video Output	Component, Composite or S-Video via breakout cable
  Analog Audio Input	2 channel RCA HiFi audio in 24-bit
  Analog Audio Output	2 channel RCA HiFi audio in 24-bit
  SPDIF Audio Output	2 channel 24-bit
  Multiple Rate Support	HDMI video connections are switchable between SD, HD, and Ultra HD. Component analog video connections are switchable between SD and HD.
  Computer Interface	PCI Express 4 lane, compatible with 4, 8, and 16 lane PCIe slots
  SD Format Support	625i/50 PAL and 525i/59.94 NTSC, 480p
  HD Format Support	720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
  Ultra HD Format Support	2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
  HDMI Video Sampling	RGB 4:4:4 in HD and YUV 4:2:2 in Ultra HD
  HDMI Audio Sampling	Television standard sample rate of 48 kHz and 24-bit
  Color Space	REC 601, REC 709
  HDMI Color Precision	10-bit
  HDMI Configuration	HDMI 1.4b supports deep color and automatically configures to connected display
  Copy Protection	HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
  UHD/HD Down Conversion	Software based down conversion during video playback
  HD Up Conversion	Real time SD to 1080 HD and 720 HD during video capture
  Real Time Effects	Final Cut Pro X internal effects; Premiere Pro CC Mercury Playback Engine effects; Avid Media Composer internal effects
  Internal Software Upgrade	Firmware built into software driver, loaded at system start or via updater software
  Physical Installation	PCI Express 4 lane, compatible with 4, 8, 16 lane PCI Express slots on Mac OS X, Windows 7 and 8, and Linux
  Operating Temperature	32 to 104°F (5 to 40°C)
  Storage Temperature	-4 to 113°F (-20 to 45°C)
  Relative Humidity	0 to 90% non-condensing
  Dimensions	3.4″ depth (8.6 cm)
