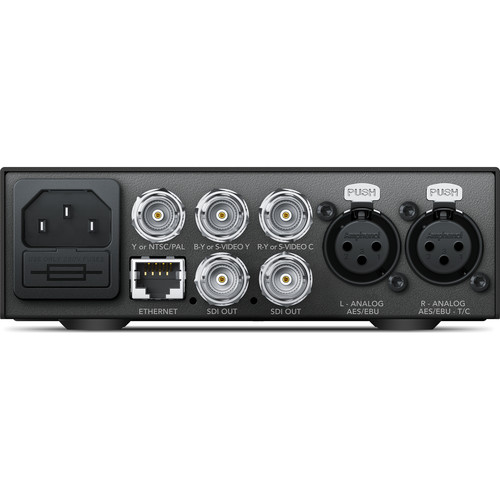

Blackmagic Design Teranex Mini Analog to SDI 12G Converter

Blackmagic Design Teranex Mini Analog to SDI 12G Converter

PRODUCT HIGHLIGHTS

• Advanced High-Data Rate Signal Converter
• Upconvert Analog to 4K DCI 4096x2160p
• Two Independent 12G-SDI Outputs
• Run 4096x2160p 70 ft Using 6G-SDI Cables
• XLR Inputs Switchable to AES/EBU
• Ethernet Port for Remote Control or PoE
• Supports Optional LCD Smart Front Panel
• Intelligent Thermal Heat Dissipation
• 3 Units 1U Rack-Mountable in 19″ Rack
• Manage Numerous Units from a Mac or PC

• Analog Video Input	Component SD/HD, NTSC, PAL, and S‑Video
  SDI Video Output	2x SDI on BNC (automatically matches SD, HD, 3G, 6G, 12G-SDI HDMI video input)
  Analog Audio Input	2 channels professional balanced analog audio via XLR connectors Right XLR can be configured for timecode input
  AES/EBU Audio Input	4 channels professional 110 ohm balanced digital audio via XLR connectors Right XLR can be configured for timecode input
  Multi Rate Support	SDI output switchable between HD for composite and S-Video and 4K for component HD
  Updates and Configuration	USB or Ethernet
  Re-Clocking	Yes
  SDI Format Support	525/29.97 NTSC, 625/25 PAL, 1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60, 2048 x 1080PsF23.98, 2048 x 1080PsF24, 2048 x 1080PsF25, 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25, 3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p59.94, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30, 4096 x 2160p50, 4096 x 2160p59.94, 4096 x 2160p60
  Analog Format Support	625/25 PAL, 525/23.98 NTSC, 525/29.97 NTSC, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60
  SDI Compliance	SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 424M-B, ITU-R BT.656, and ITU-R BT.601
  SDI Video Rates	SDI video connections are switchable between standard definition and high definition
  SDI Video Sampling	4:2:2 and 4:4:4
  SDI Audio Sampling	Television standard sample rate of 48 kHz and 24-bit
  SDI Color Precision	YUV 4:2:2 and RGB 4:4:4 in HD, 2K, and 4K
  SDI Color Space	REC 601, REC 709
  Analog Color Space	REC 601, REC 709
  Analog Color Precision	4:2:2
  Software Control	Mac OS X and Windows software upgrade via USB and Ethernet
  Internal Software Upgrade	Via included updater application
  Basic Settings Control	Mini Switches, USB, and Ethernet via free software utility
  Power Supply	1x built-in international AC power supply with IEC C14 inlet IEC power cable required (not included) 90 – 240 VAC input
  Power Over Ethernet	Can be powered via 48 VDC using PoE (Power-over-Ethernet)
  Power Consumption	15 W
  Operational Voltage Range	90 – 240 VAC
  Operating Temperature	32 to 104°F (0 to 40°C)
  Storage Temperature	-4 to 140°F (-20 to 60°C)
  Relative Humidity	0 to 90% non-condensing
  Dimensions	W x H x D: 5.5 x 1.8 x 6.7″ (14 x 4.6 x 17 cm) (with SDI port included)
  Weight	1.4 lb (0.63 kg)
