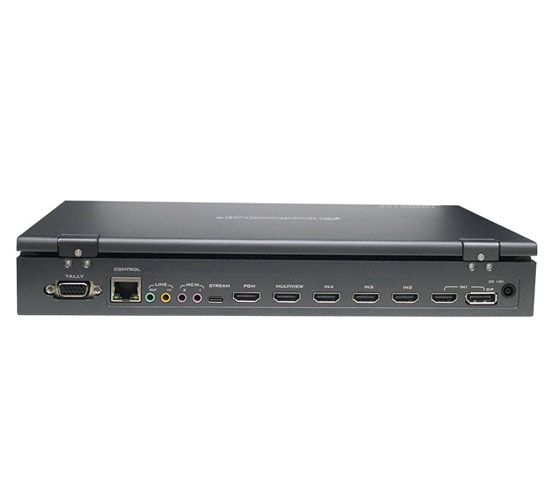

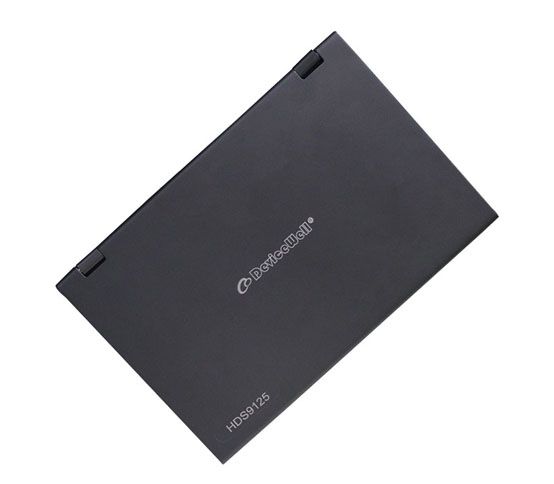

Device Well HDS9125 Video Switcher

Portable integrated design

◆Comes with 11.6-inch LCD display

◆Aluminum alloy body, high strength and light weight

◆Integrated control keyboard

◆Support up to 4 HDMI+1 DP inputs

◆2 MIC inputs

◆1-CH3.5 stereo input

◆1-CH3.5 stereo output

◆1-CH3.5 headphones listen

◆Support audio follow and mix functions

◆Support HDMI audio de-embedding

◆PGM output: 1 HDMI

◆Multiviewoutput: 1 HDMI

◆Support MIX /FADE and other special effects switching

◆Support CUT hard cut and AUTO special effect switch

◆Support Tally

  The DeviceWell HD Video Switcher HDS9125 adopts a portable integrated design and comes withan 11.6-inch HD monitor screen, which can directlymultiviewoutput. Standard size:190mm*285mm*42.6mm, suitable for video effects switching needs in small outdoor scenes. Theequipment integrates common components of switcher such as multiviewprocessor, special effectgenerator, audio processor, control keyboard and so on.HDS9125 supports 4 HDMI + 1 DP signal input, a total of 5 video signals. The external previewsignal can be output synchronously. HDS9125 supports HDMI embedded audio + external analogaudio. After mixing, it can be embedded in the output HDMI signal or output from the analog port.The resolution of all input signals is automatically adapted, and the output signal resolution can beselected as required, which is quite flexible. For broadcast and television, program production,on-site interview and speech production, outdoor sports events, school courseware production andother video switching needs, the functions of HDS9125 can fully meet
