Devicewell MD1010-1011 Wireless Tally light transmitter + Wireless Tally Light Indicator

TX: the transmitter module,

Insert the transmitter module into the DCB interface of the switcher,

and the red light on the module indicates that it has been started normally;

Power on prompt

Indicator 1: Flashing once means 0-30% power, flashing twice means 30%-60% power, flashing 3 times means 60% or more;
Charging tips
Indicator 2: The module can be charged only when the module is turned on, and the indicator is on when charging;

RX: TALLY lamp module,

Turn on the module, the transmitter will automatically connect with

the TALLY receiver, and each module has a factory-set channel number;

Product name Wireless TALLY System
Product model MD1010-MD1011
Transmitter size 66*24*10mm( L, W&H)
Tally light size 75*60mm( L&W)
Tally light power supply 50000mAh lithium battery
Tally light weight 112g/pc
Operating temperature 0℃~50℃ without condensation
Storage temperature -20℃~75℃
Working humidity 20%~70%RH
Storage humidity 0%~90%RH，no condensation
Transmission distance ≥250m
Power supply 12V/DC
Support switcher DeviceWell HDS full series
Support the number of tally
lights
Unlimited, can increase arbitrarily with the number of
switcher channels
TALLY LIGHT MD1010-MD1011(TALLY LIGHT)
VER:1.0
◆Compact and portable;
◆Red and green double light indication;
◆USB 5V power supply;
◆Open transmission distance ≥ 350 meters
◆Hot shoe screw hole;

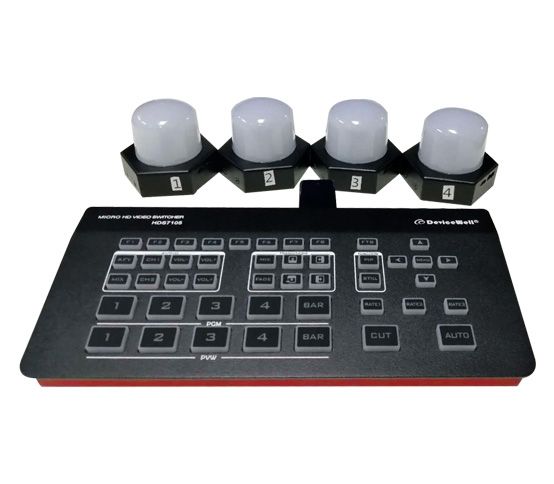

◆It can be directly connected to DeviceWell HDS7105 switcher
◆ 1 pallet 4 and above paired PVW/PGM status indicator
