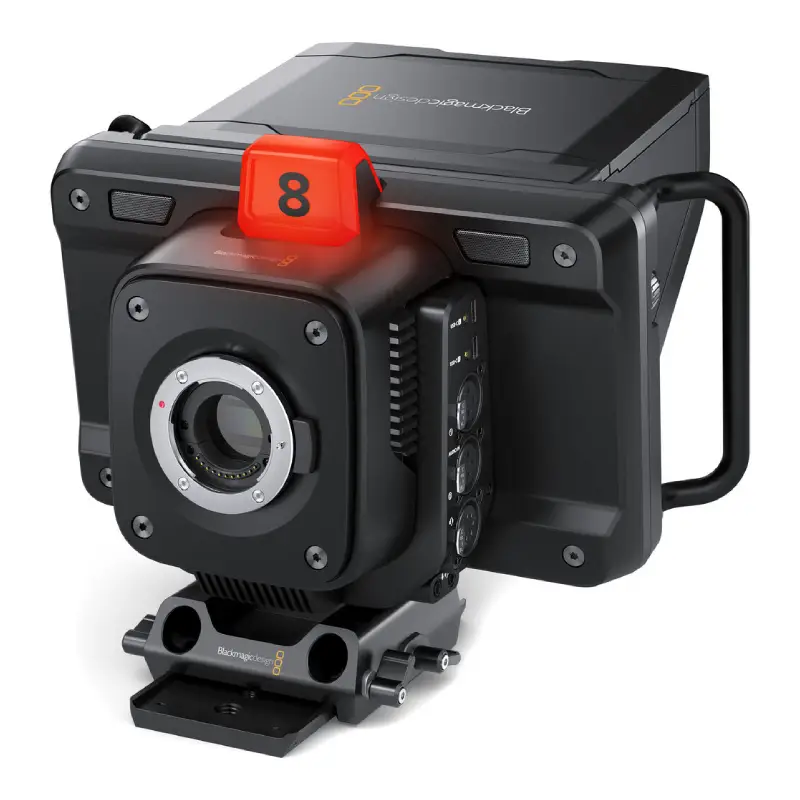

สเปค Blackmagic Design Studio Camera 4K Pro G2
| Imaging | |
| Effective Sensor Size | 17.78mm x 10mm (Four Thirds) |
| ISO Sensitivity | 100 to 25,600 |
| Gain | 0 to 18 dB |
| Sensitivity | f/11 at 2000 lux 89.9% Reflectance (UHD 4K60) f/12 at 2000 lux 89.9% Reflectance (UHD 4K60) |
| Signal-to-Noise Ratio | 63 dB |
| Camera | |
| Lens Mount | Micro Four Thirds |
| Shutter Speed | 1/5000 to 1/24 Second |
| Built-In ND Filter | None |
| Built-In Microphone Type | Stereo |
| Broadcast System Compatibility | NTSC, PAL |
| Interfaces | |
| CCU I/O | None |
| Video I/O | 1 x BNC (12G-SDI) Input 1 x BNC (12G-SDI) Output 1 x HDMI Output |
| Audio I/O | 2 x XLR 3-Pin Mic/Line (+48 V Phantom Power) Input on Camera Body 1 x 1/8″ / 3.5 mm TRS Stereo Microphone Input 1 x 1/8″ / 3.5 mm TRRS Headphone/Mic Input/Output 1 x XLR 5-Pin Intercom Input/Output |
| Other I/O | 1 x RJ45 (10 Gigabit Ethernet) Control/Data/Monitor/Video Input/Output 2 x USB-C (USB 3.2 / 3.1 Gen 1) Data/Video Input/Output |
| Recording | |
| Raw Recording | Blackmagic RAW 10-Bit 3840 x 2160 at 23.98/24.00/25/29.97/50/59.94/60 fps [26 to 190 Mb/s] |
| Audio Recording | ProRes: 2-Channel 24-Bit 48 kHz LPCM Audio |
| Display | |
| Display Type | Fixed Touchscreen LCD |
| Size | 7″ |
| Resolution | 1920 x 1200 |
| Power | |
| Power I/O | 1 x XLR 4-Pin (12VDC) Input 1 x Barrel (12VDC) Input |
| Power Consumption | 46 W |
| Environmental | |
| Operating Temperature | 0 to 40°C / 32 to 104°F |
| Storage Temperature | -20 to 45°C / -4 to 113°F |
| Operating Humidity | 0 to 90% |
| General | |
| Accessory Mount | 2 x 1/4″-20 Female |
| Tripod Mount | 3/8″-16 Female |

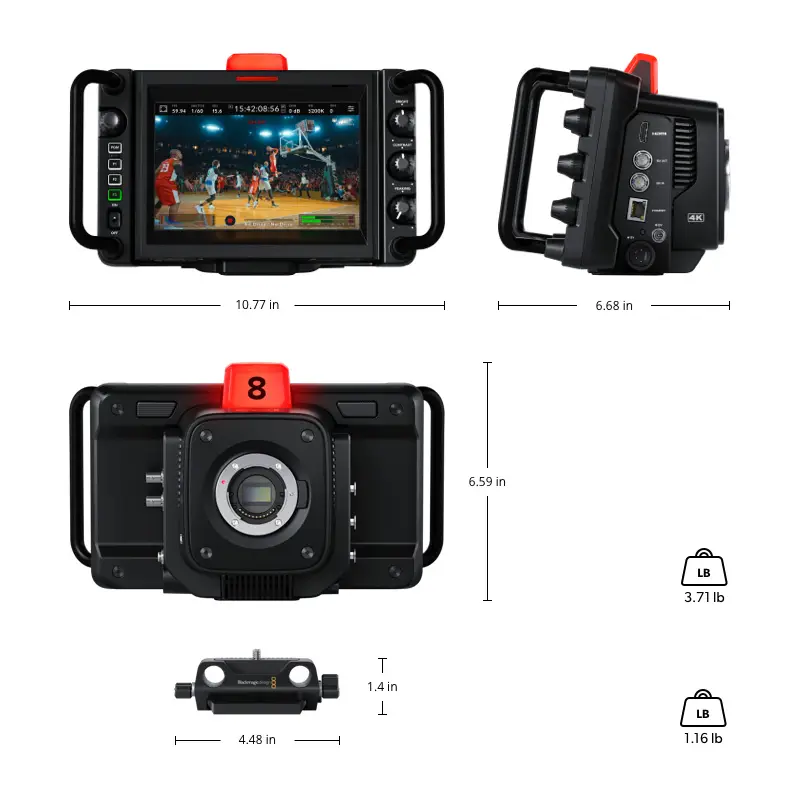

| Dimensions (W x H x D) | 27.36 x 16.97 x 16.74 cm / 10.77 x 6.68 x 6.59″ (Without Protrusions) |
| Weight | 1.68 kg / 3.71 lb |
What’s Included
- Blackmagic Studio Camera 4K Pro G2
- Blackmagic Studio Camera Sun Shade
- Tripod Mount compatible with 15mm lightweight rails
- Turret Dust Cap
- External 12V DC power supply with locking connector and international sockets adapters for most countries.
