สเปค Blackmagic Design ATEM SDI Pro ISO Switcher
| Available M/E Layers | 5 M/E |
| Effect Types | DVE, Transition, Chroma Key |
| Generators | 1 x Pattern 2 x Color |
| Audio Mixing | 2-Channel Mixing |
| Processing | |
| Switching Type | IR Remote, Pushbutton, Software |
| Input | |
| Number of Video Input Sources | 4 |

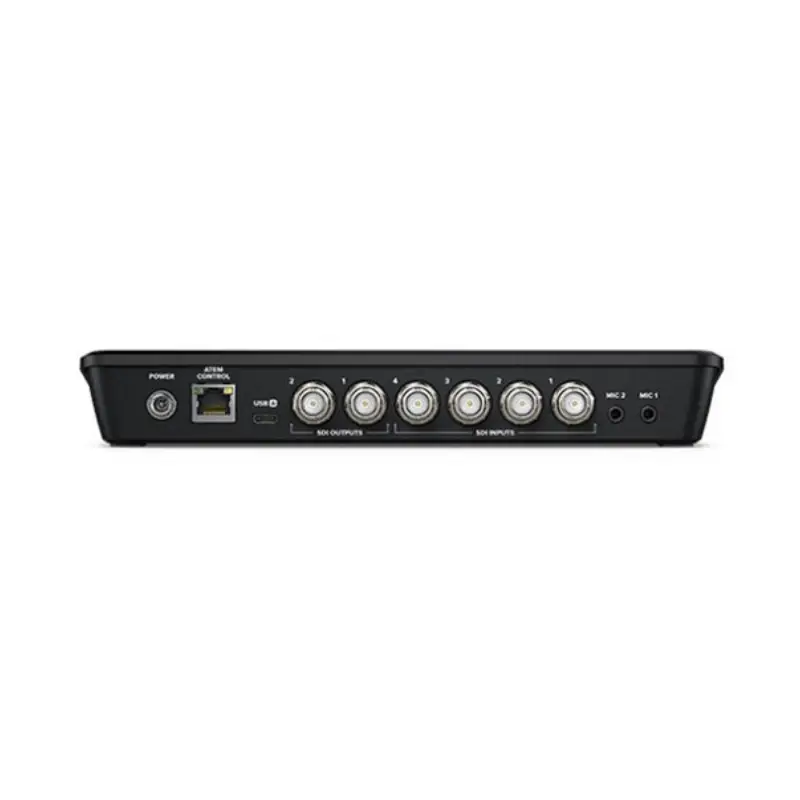

| Video Input Connectors | 4 x BNC (3G-SDI) |
| Input Video Format | SDI (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 56/59.94/60 fps 720p at 50/59.94/60 fps |
| Audio Input Connectors | 2 x 1/8″ / 3.5 mm TRS Stereo Analog Female |
| Input Audio Format | Analog |
| Embedded Audio Input | SDI: 2-Channel (per Input) |
| Output | |
| Video Output Channels | 3 |
| Video Output Connectors | 2 x BNC (3G-SDI) (Preview) 1 x USB Type-C |
| Output Video Format | SDI (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps USB Type-C (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps |
| Embedded Audio Output | SDI |
| Multiview Output | None |
| Connectivity | |
| Other I/O | 1 x RJ45 Control Input/Output |
| HDCP Support | None |
| Hardware | |
| OS Compatibility | macOS 11 macOS 12 or Later Windows 10 Windows 11 *As of July, 2022: check with manufacturer for the most up-to-date compatibility |
| Power Connector | 1 x Barrel (12 VDC) Input |
| Power Consumption | Device: 36 W |
| Environmental | |
| Operating Temperature | 5 to 40°C / 41 to 104°F |
| Storage Temperature | -10 to 60°C / 14 to 140°F |
| Operating Humidity | 0 to 90% (Non-Condensing) |
| General | |

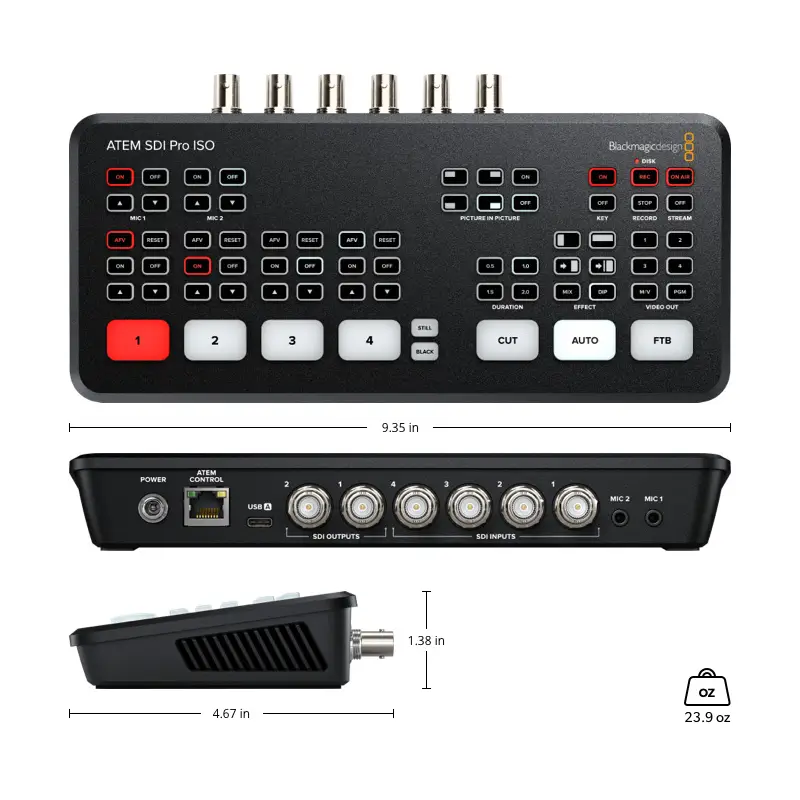

| Dimensions | 23.75 x 11.86 x 3.51 cm / 9.35 x 4.67 x 1.38″ |
| Weight | 678 g / 23.9 oz |
